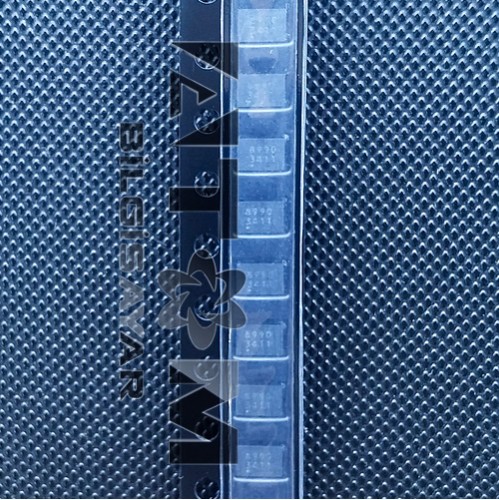

APE8990GN3B 8990 Ultra-Low On-Resistance Dual Load Switch 6A DFN3x2-14

Part Number: APE8990GN3B

Manufacturer: Advanced Power Electronics Corp. (APE)

Package: DFN 3x2-14L (3mm × 2mm, 14-Pin, Thermal Pad)

Marking Code: 8990 (Second line contains date code in YWWS format)

APE8990GN3B Datasheet

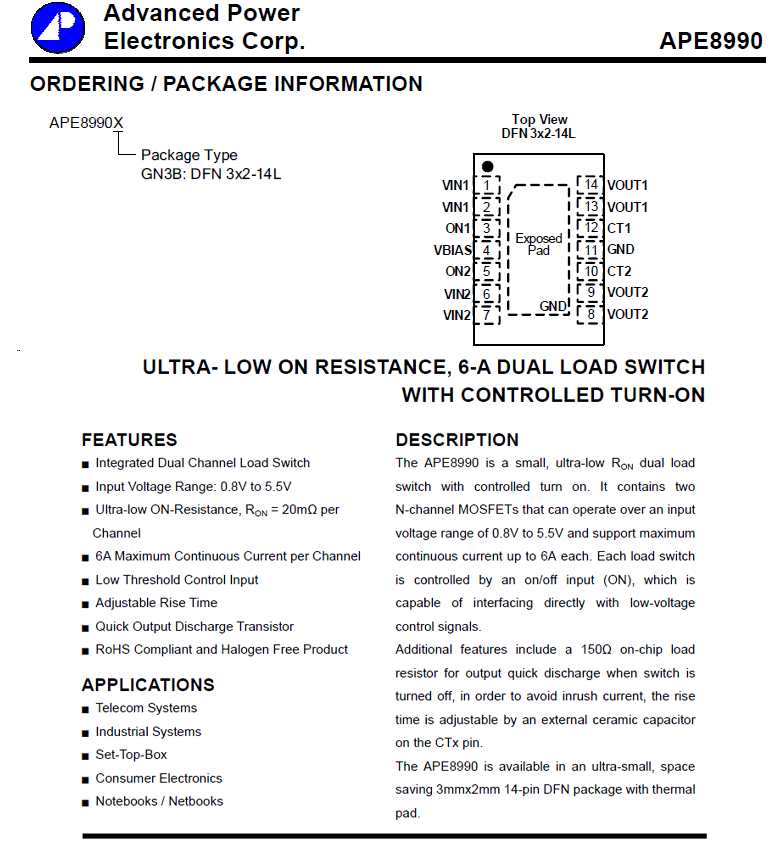

Product Features

The APE8990GN3B is a dual-channel N-Channel MOSFET power switch designed for high-side load switching applications. It supports up to 6A continuous current per channel with ultra-low on-resistance (20mΩ). The controlled turn-on feature prevents inrush current, and the integrated 150Ω discharge resistor provides quick output discharge. Ideal for power management in notebooks, tablets, and set-top boxes.

• Function: Ultra-Low On-Resistance Dual Load Switch with Controlled Turn-On.
• Input Voltage Range (VIN): 0.8V - 5.5V.
• Bias Voltage Range (VBIAS): 3V - 5.5V (VBIAS ≥ VIN required).
• Continuous Output Current: 6A per channel (Maximum).
• On-Resistance (RDS_ON):
  • Typical 20mΩ (VBIAS=5V, IOUT=1A)
  • Typical 21mΩ (VBIAS=3.3V, IOUT=1A)
• Quiescent Current: Typical 120µA, Maximum 180µA.
• Shutdown Current: Maximum 1µA.
• Key Features:
  • Low Threshold Control Inputs (VIH: 1.2V min, VIL: 0.5V max).
  • Adjustable Rise Time Control (via external capacitor on CTx pins).
  • Quick Output Discharge Transistor (150Ω internal pull-down resistor).
• Thermal Characteristics:
  • Thermal Resistance (θJA): 65°C/W
  • Thermal Resistance (θJC): 57°C/W
  • Operating Temperature: -40°C to +85°C
• Package Type: DFN 3x2-14L (with Thermal Pad, RoHS and Halogen Free compliant).
• Applications: Notebooks, Netbooks, Tablet PCs, Consumer Electronics, Set-Top-Box, Telecom and Industrial Systems.
