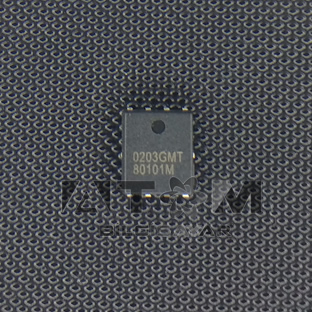

AP0203GMT-HF N-Channel Power MOSFET (30V, 2.2 mOhm)
IC Code: AP0203GMT MOSFET / 0203GMT
Status: New, unused, and Original.
The AP0203GMT-HF is an N-Channel Enhancement Mode Power MOSFET manufactured by Advanced Power Electronics Corp. (APEC). Featuring ultra-low on-resistance (RDS(ON)) and fast switching capabilities, it is ideally suited for high-efficiency DC-DC converters, synchronous rectifiers, and demanding power management applications. The PMPAK 5x6 package maintains compatibility with the standard SO-8 footprint while offering enhanced thermal performance, enabling the device to efficiently manage high current density within its 30V V DSS rating. This device minimizes conduction losses, maximizing system efficiency.
Key Technical Specifications
| Parameter | Value | Unit |
|---|---|---|
| Manufacturer | APEC (Advanced Power Electronics Corp.) | |
| Drain-Source Voltage (V DSS) | 30 | V |
| Maximum On-Resistance (R DS(ON)) | 2.2 | mOhm |
| Continuous Drain Current (ID @ TA=25 C) | 38 | A |
| Package Type | PMPAK 5x6mm (SO-8 Compatible) | |
| Properties | N-CHANNEL ENHANCEMENT-MODE POWER MOSFET |

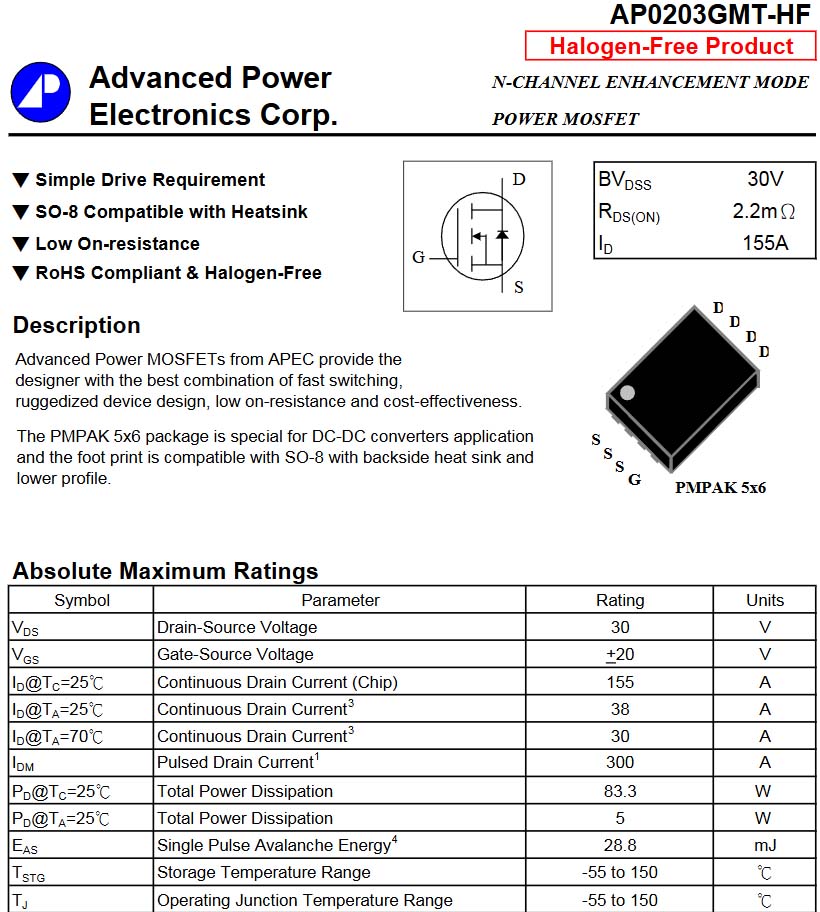

AP0203GMT Datasheet
Warranty Policy: There is no warranty for semiconductors.
