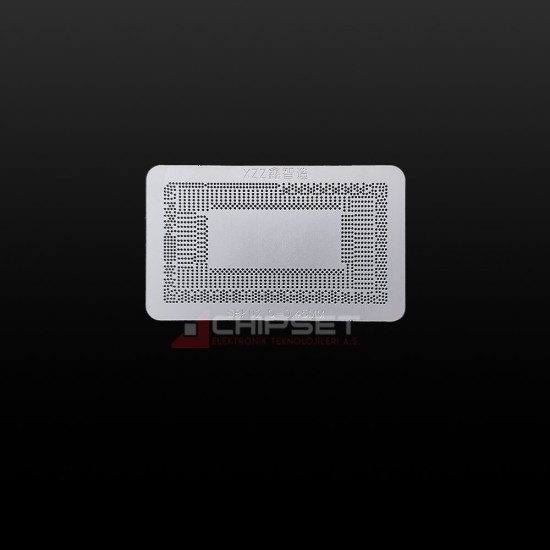

SRK02 Series Magnetic-Sensitive 3D Stencil FC-BGA1449

Compatible Models: SRK01, SRK02, SRK03, SRK04, SRK05, SRK07, SRK08, SRKH4, SRKH5, SRKH6, SRK1F, SRKQY, SRK8S, SRK0X, SRK0Y, SRKSL, SRKSK, SRKSB, SRKSC, SRKSD, SRKSF

SRK01 i7-1165G7 FCBGA1449

SRK02 i7-1165G7 FCBGA1449

SRK03 i5-1145G7 FCBGA1449

SRK04 i5-1135G7 FCBGA1449

SRK05 i5-1135G7 FCBGA1449

SRK07 i3-1115G4 FCBGA1449

SRK08 i3-1115G4 FCBGA1449

SRKH4 i7-11375H FCBGA1449

SRKH5 i7-11370H FCBGA1449

SRKH6 i5-11300H FCBGA1449

SRK1F i7-1185G7 FCBGA1449

SRKQY i3-1115G4 (C0 stepping) FCBGA1449

SRK8S i3-1125G4 FCBGA1449

SRK0X i7-1185G7E FCBGA1449

SRK0Y i7-1185GRE FCBGA1449

SRKSL i7-11390H FCBGA1449

SRKSK i5-11320H FCBGA1449

SRKSB i7-1195G7 FCBGA1449

SRKSC i7-1195G7 FCBGA1449

SRKSD i5-1155G7 FCBGA1449

SRKSF i5-1155G7 FCBGA1449

Please compare the pictures before purchasing!

The product you are examining is only the 3D Stencil for Intel SRK01, SRK02, SRK03, SRK04, SRK05, SRK07, SRK08, SRKH4, SRKH5, SRKH6, SRK1F, SRKQY, SRK8S, SRK0X, SRK0Y, SRKSL, SRKSK, SRKSB, SRKSC, SRKSD, SRKSF Series. It does not include Main Magnet and Intermediate Plate (Spacer Frame).

If you wish, you can purchase the Main Magnet by clicking here.

You can purchase the SRK02 Series (FCBGA1449) 3D Stencil Intermediate Plate (Spacer Frame) by clicking here.

3D Stencils consist of 3 parts.

1. Main Magnet (Base Magnet)

2. Intermediate Plate (Spacer Frame) – Separate model spacer frame for each chipset model.

3. 3D Stencil (Separate 3D stencil for each chipset model) – (You are currently reviewing this product.)

Application:

The chipset to be reballed is placed inside the intermediate plate, then the 3D Stencil is placed on top, and finally the Main Magnet is placed on top. This way, the reballing process can be performed.

If solder balls are used in the reballing process, it provides convenience when removing excess balls from the stencil channel.

Solder paste can also be used in the reballing process. However, this depends entirely on the technician's skill.

To view intermediate plate and 3D stencil models, CLICK HERE.

Video:

Manufacturer: OEM

Brand: ChipsetAS

Specifications: 3D STENCIL 0.45MM

Condition: New, unused. Original.

Warranty Period: There is no warranty for semiconductors.

IMPORTANT NOTICE: Stencil and other metal/composite parts are carefully packaged to avoid damage during shipping, but if there is any damage during delivery, the package must be opened in the presence of the courier and a report must be created. We do not accept responsibility for damages without a report.

Shipping:

All orders placed before 16:30 on weekdays and before 14:30 on Saturdays are picked up by the contracted courier company on the same day. Orders placed after 16:30 will be given to the contracted courier company on the next business day. International sales will be sent via registered parcel through the local post office.

(Excluding busy courier periods, public holidays, and conditions that may prevent the courier company from operating.)

(Product photos are taken directly from our stock items.)
