MX25U12872FM2I02 MX25U12872F Macronix 128M-bit 1.8V SPI Flash SOP8

Product Code: MX25U12872FM2I02

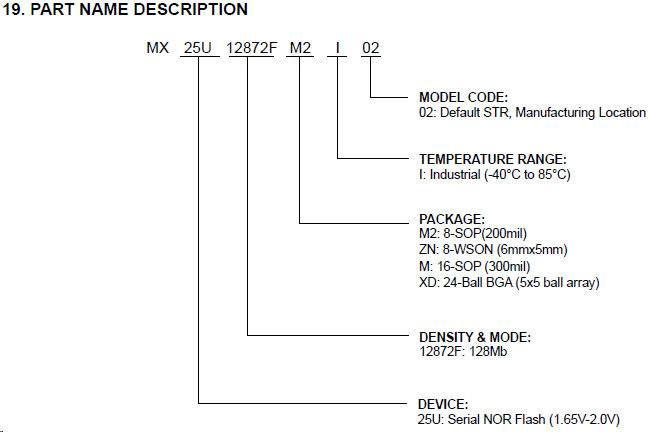

Part Marking: MX25U12872F (second line M2I02)

Brand: Macronix

Package: SOP8 200MIL

Datasheet: Macronix MX25U12872F Datasheet

Product Specifications

The MX25U12872FM2I02 is a low-voltage (1.8V), 128M-bit (16MB) capacity SPI NOR Flash memory integrated circuit manufactured by Macronix. It offers high-speed read operations (up to 133MHz), QPI (Quad Peripheral Interface) support, and advanced data protection features. It is an ideal and reliable storage solution for laptop BIOS firmware, applications requiring advanced security, and low-power embedded systems.

• Product Name: MX25U12872FM2I02-TR MX25U12872F Macronix SPI NOR Flash
• Memory Type: SPI NOR Flash
• Memory Capacity: 128M-bit (16MB)
• Operating Voltage (VCC): 1.65V - 2.0V (Standard 1.8V)
• Supported Interfaces: Standard SPI, Dual SPI, Quad SPI, QPI
• Maximum Clock Frequency: 133MHz
• Package Type: SOP8 (200MIL)
• Special Technologies: Suspend/Resume, Advanced Protection, Unique ID
• Operating Temperature: -40°C ~ +85°C (Industrial Grade)

Sales Information

Condition: NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via contracted courier. (Excluding busy shipping periods, public holidays, and circumstances that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped the same business day via Air Parcel. Orders placed on weekends and outside working hours are shipped on the following first business day. (Excluding busy periods) Country of dispatch is Turkey.
