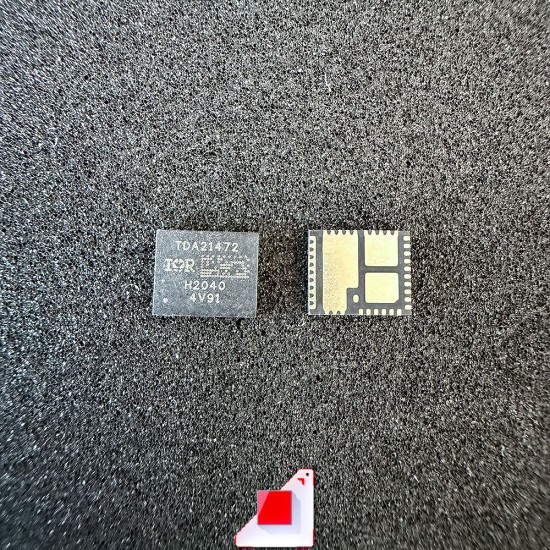

TDA21472 Infineon OptiMOS Powerstage 80A PQFN 5x6
Product Code: TDA21472
Part Marking: TDA21472
Brand: Infineon
Package Code: PQFN 5x6 mm
Datasheet: TDA21472
Product Features
TDA21472 is an Infineon OptiMOS™ Powerstage. It is a high-efficiency integrated power stage that co-packages the driver, Schottky diode, high-side and low-side MOSFETs. Optimized for CPU, GPU and DDR memory power applications.
- Function: OptiMOS™ Powerstage (Integrated Power Stage / DrMOS).
- Input Voltage (VIN): 4.25V ~ 16V.
- Output Current Capability: 80A OCP.
- Switching Frequency: Up to 1.5 MHz.
- Current Sense: 5 mV/A on-chip MOSFET current sensing with temperature compensation.
- Package: PQFN 5 mm x 6 mm.
- Features: Deep-sleep mode, Body-Braking, 3.3V tri-state PWM compatible, thermal shutdown.
- Application Areas: Server CPU core, GPU, DDR memory power, high frequency dc-dc converters.
Sales Information
Condition: NEW. Original. Tray (without packaging).
Warranty Period: No warranty is provided for semiconductor products.
Shipping (Turkey): All orders placed on weekdays before 16:00 and on Saturdays before 14:30 are shipped the same day via contracted cargo. (Excluding peak cargo periods and extraordinary situations)
International Shipping: Orders placed on weekdays before 16:00 are shipped the same business day via Air Parcel. Orders placed on weekends and outside business hours are shipped on the following business day. (Excluding peak periods) Shipping country is Turkey.
