JWF6 JW5213ADFND#PBF JW5213A JoulWatt 3A Synchronous Step-Down Converter DFN2x2-8

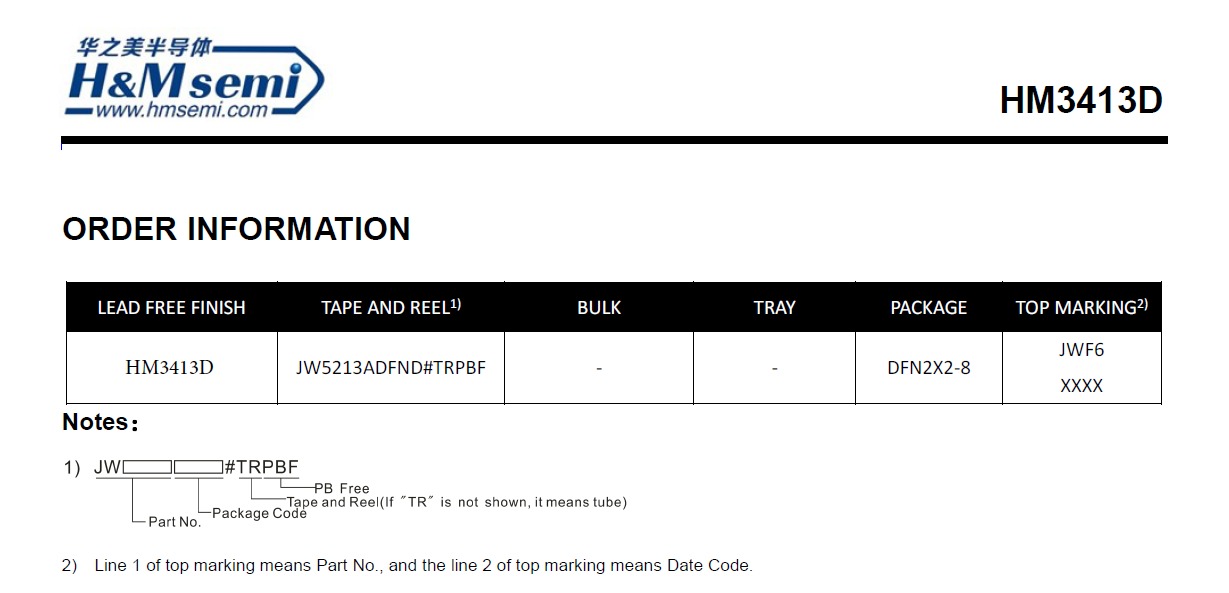

Product Code: JW5213ADFND#PBF / HM3413D

Part Marking: JWF6

Brand: JoulWatt (JW) (It is an OEM product manufactured by H&M Semi for JoulWatt.)

Package Type: DFN2x2-8 (8-Pin)

Datasheet: JW5213A

Product Features

The JW5213ADFND#PBF (JW5213A) is a high-performance current mode monolithic buck switching regulator designed by JoulWatt (JW). Operating over an input voltage range from 2.5V to 6V, it delivers up to 3A of continuous output current. It offers a fully integrated power management solution with its built-in P-channel and N-channel MOSFETs. Operating at a 1MHz switching frequency, it minimizes the size of external inductors and capacitors while achieving a peak efficiency of up to 95%. It optimizes energy consumption remarkably by maintaining high efficiency (>84%) even under light load conditions. Packaged in a highly compact DFN2x2-8, this chip ensures safe operation through comprehensive protection mechanisms including internal soft start, input UVLO, short circuit protection with hiccup mode, hot plug protection, and thermal protection. Additionally, it features an output POK (Power OK) indication function for system-level power monitoring. It is widely preferred for applications requiring 5V or 3.3V point of load (POL) voltage conversion.

• Type: Current Mode Monolithic Buck Switching Regulator
• Input Voltage Range: 2.5V to 6V operating tolerance
• Output Capacity: 3A continuous output current
• Efficiency: Up to 95% peak efficiency and >84% efficiency under light load
• Operating Frequency: 1MHz switching frequency
• Protections: Input UVLO, hiccup mode short circuit protection, hot plug, and thermal protection
• Additional Features: Internal soft start and output POK (Power OK) pin
• Package Type: DFN2x2-8 (2x2 mm)
• Applications: Set-top boxes, telecom/networking systems, storage equipment, and GPU/DDR power circuits
