IT5570VG-256 CXO ITE IO / Embedded Controller BGA

Product Code: IT5570VG-256-CXO

Part Marking: IT5570VG-256 CXO

Brand: ITE Tech. Inc.

Package Type: VFBGA (Ball Grid Array)

Datasheet: N/A

Product Features

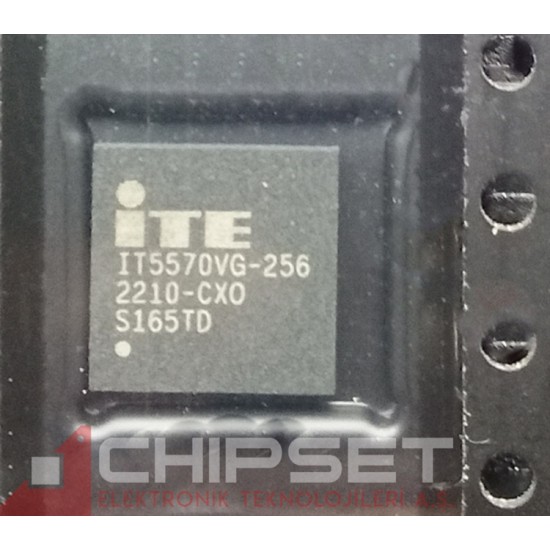

The IT5570VG-256 (IT5570VG-256-CXO) is a high-performance Embedded Controller (EC) and KBC IC designed by ITE Tech for laptops and portable systems. Bearing the ITE logo as clearly seen in the visual, this hardware utilizes a VFBGA (Ball Grid Array) package structure, unlike standard leaded (LQFP) I/O controllers, and requires BGA soldering techniques during the assembly process. As indicated by the chip code extension, it is equipped with a 256KB programmable eFlash (Embedded Flash) memory. Since the system will not trigger if the chip is installed blank, it is a technical necessity to program it with the appropriate firmware for the specific motherboard via the Parallel, I2C and keyboard connector interface before or after assembly. It directly manages critical system processes on the motherboard such as keyboard input commands, advanced power management, and thermal control monitoring. It is a specific power and I/O controller frequently utilized in the logic board repairs of laptop motherboards.

• Type: Embedded Controller (EC) / KBC IC
• Internal Memory: 256KB programmable eFlash memory
• Features: Advanced power management and thermal control infrastructure
• Programming: Software support via JTAG or Keyboard interface (Programming is mandatory)
• Version Code: CXO
• Package Type: VFBGA (Ball grid array structure)
• Applications: Laptop motherboards

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
