AON6992 6992 Dual Asymmetric Nchannel DFN5x6 MOSFET

Product Properties: 30V Dual Asymmetric N-Channel DFN5x6D MOSFET

Part Code: AON6992 MOSFET IC

Part Name: AON6992 IC

Brand: Alpha - Omega (All rights belong to Alpha Omega Semiconductor)

Datasheet Link: AON6992

Status: New, original distributor product.

- Latest Trench Power AlphaMOS (αMOS LV) technology

- Very low R_DS(on) at 4.5V_G

- Low Gate Charge

- High Current Capability

- RoHS and Halogen-Free Compliant

Specifications:

V_DS: Q1=30V, Q2=30V

I_D (at V_GS=10V): Q1=50A, Q2=85A

R_DS(ON) (at V_GS=10V): Q1= < 5.2mΩ, Q2= < 2mΩ

R_DS(ON) (at V_GS=4.5V): Q1= < 8.6mΩ, Q2= < 2.5mΩ

Applications:

- Suitable for DC to DC, Point of Load in servers and computing devices.

- Used in telecommunication devices and industrial electronics with non-isolated DC to DC conversion.

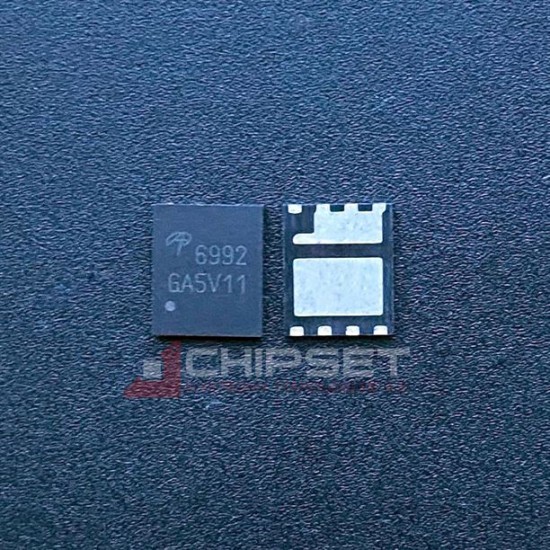

Product Preview and Package Details:
