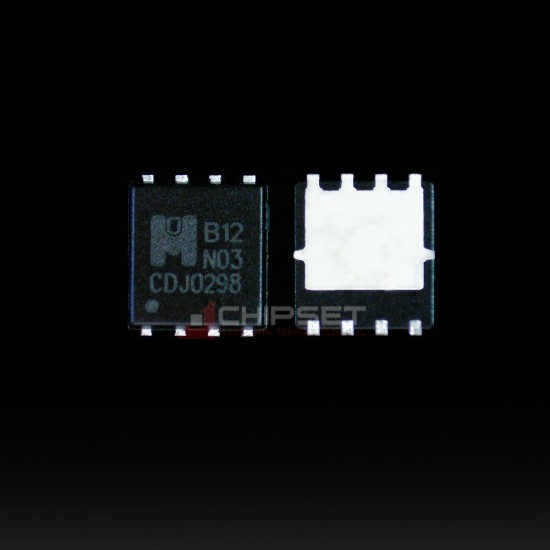

EMB12N03H B12N03 30V 25A EMC N-Channel Power MOSFET EDFN 5x6

Product Code: EMB12N03H-B12N03

Part Marking: B12N03 B12NO3

Brand: Excelliance MOS Corporation (EMC)

Package Code: EDFN 5x6

Datasheet: EMB12N03H Datasheet

Product Features (Datasheet Data)

Manufactured by Excelliance MOS Corporation, this component is a logic level enhancement mode N-channel field effect transistor. It is designed with a compact EDFN 5x6 package. The product is 100% UIS and Rg tested to meet reliability standards. Furthermore, it is fully compliant with environmental standards, featuring Pb-free lead plating and a halogen-free construction.

• Function: 30V 25A Logic Level N-Channel Power MOSFET.
• Drain-Source Voltage (VDS): 30V.
• Gate-Source Voltage (VGS): ±20V.
• Continuous Drain Current (ID): 25A (TC = 25°C); 20A (TC = 100°C).
• On-Resistance (RDS(on) Max): 11.5 mΩ (@VGS = 10V); 23 mΩ (@VGS = 4.5V).
• Operating Temperature: -55°C to +150°C.
• Environmental Standards: Pb-Free lead plating and Halogen Free.
• Testing: 100% UIS and Rg tested.

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
