- Model: 8S30-TPD8S300RUKR

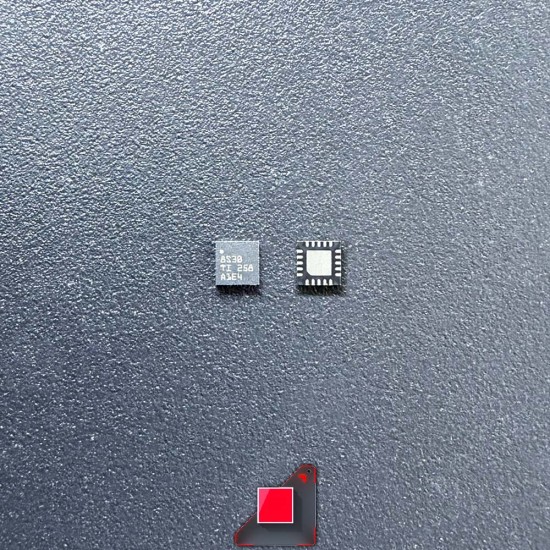

TPD8S300 USB Type-C™ Port Protector: Short-to-VBUS Overvoltage and IEC ESD Protection
Product Code: TPD8S300
Part Marking: 8S30 8S3O
Brand: Texas Instruments (TI)
Package: WQFN-20 (RUK) / 3.00 mm × 3.00 mm
Product Features (Datasheet Data)

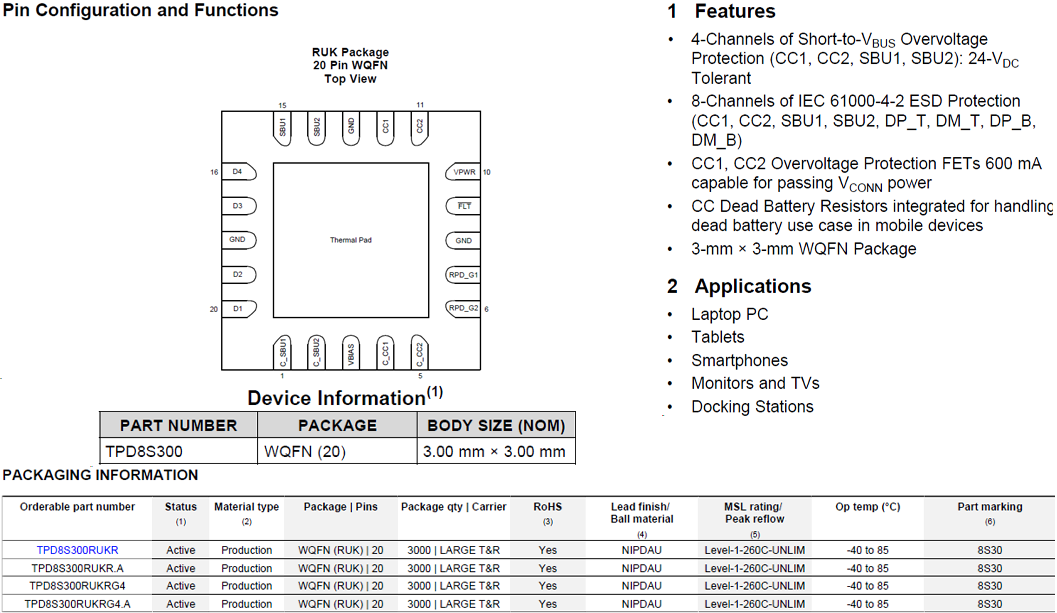

The TPD8S300 is a single-chip USB Type-C port protection solution from Texas Instruments that provides 20 V Short-to-VBUS overvoltage protection on the CC and SBU pins, along with IEC 61000-4-2 ESD protection. It makes the CC1, CC2, SBU1, and SBU2 pins tolerant up to 24 V DC against potential 20 V VBUS shorts caused by mechanical deformation in the USB Type-C connector or non-compliant adapters. It also provides IEC ESD protection for the SuperSpeed differential lines (DP_T, DM_T, DP_B, DM_B).
- Product Name: TPD8S300
- Function: USB Type-C Port Protector (Short-to-VBUS OVP + IEC ESD)
- Short-to-VBUS Protection Channels: 4 channels (CC1, CC2, SBU1, SBU2) – 24 V DC tolerant
- IEC 61000-4-2 ESD Protection Channels: 8 channels (CC1, CC2, SBU1, SBU2, DP_T, DM_T, DP_B, DM_B)
- CC1/CC2 OVP FET Current Capability: 600 mA (suitable for VCONN power pass-through)
- Dead Battery Support: Integrated CC dead battery pull-down resistors
- OVP Threshold Voltage: Typical 5.7 V (on CC and SBU lines)
- ESD Protection for SuperSpeed Lines: ±8 kV contact, ±15 kV air (IEC 61000-4-2)
- Package: 3 mm × 3 mm WQFN-20 (RUK)
- Operating Temperature: –40°C to +85°C
- Features: Lead-Free, RoHS Compliant, Halogen-Free
- Application Areas: Laptop PCs, Tablets, Smartphones, Monitors and TVs, Docking Stations
