TPS51396ARJER 51396A Texas Instruments Synchronous Step-Down Regulator VQFN-20

Product Code: TPS51396ARJER

Part Marking: 51396A

Brand: Texas Instruments

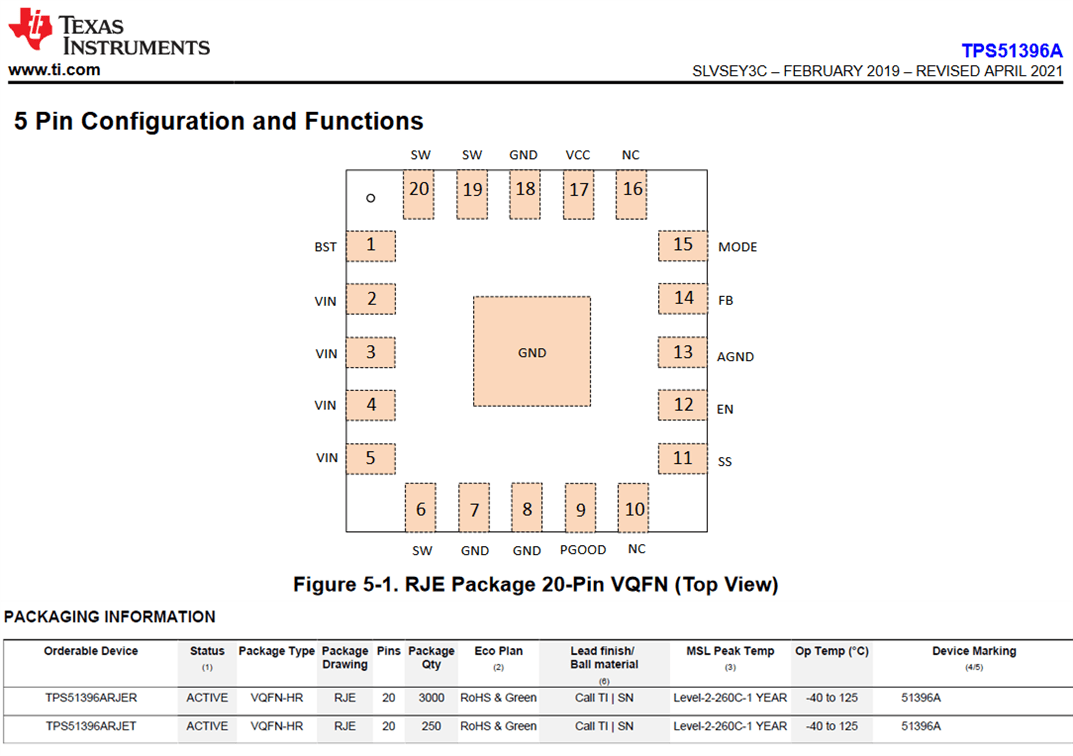

Package Type: VQFN-20 (3x3 mm)

Datasheet: TPS51396A

Product Features

The TPS51396ARJER, TPS51396ARJET is a cost-effective, high-voltage input, high-efficiency synchronous buck (step-down) regulator with integrated FETs produced by Texas Instruments. Thanks to its D-CAP3 control architecture, it offers fast transient response without requiring external compensation. It features ULQ (Ultra Low Quiescent Current) designed to extend battery life during the system's standby mode. It includes Eco-Mode to provide high efficiency at light-load conditions and an OOA (Out-of-Audio) mode that keeps the switching frequency above 25 kHz to prevent audible noise.

• Type: Synchronous Buck (Step-Down) DC-DC Regulator / Voltage Regulator
• Input Voltage Range: 4.5 V to 24 V
• Output Capacity: Adjustable output voltage from 0.6 V to 7 V and 8 A continuous current support
• Switching Frequency: 600 kHz, 800 kHz, and 1 MHz operating options selectable via the MODE pin
• Protections: OVP (Over Voltage Protection), UVP (Under Voltage Protection), Cycle-by-cycle OCP (Over Current Protection), OTP (Thermal Shutdown), and UVLO
• Package: VQFN-20 (3.0x3.0 mm HotRod package)
• Applications: Laptops (Notebooks), DTV and STB, telecom and networking devices, IPCs (Industrial PCs), factory automation, and distributed power systems

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:00 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods and exceptional circumstances)

International Shipping: Orders placed before 16:00 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
