RT6256BHGQUF 6A 23V Synchronous Step-Down Converter with 3.3V LDO UQFN-12HL 3x3
Part Number: RT6256BHGQUF
Part Marking: QK= (QK=**)
Brand: Richtek

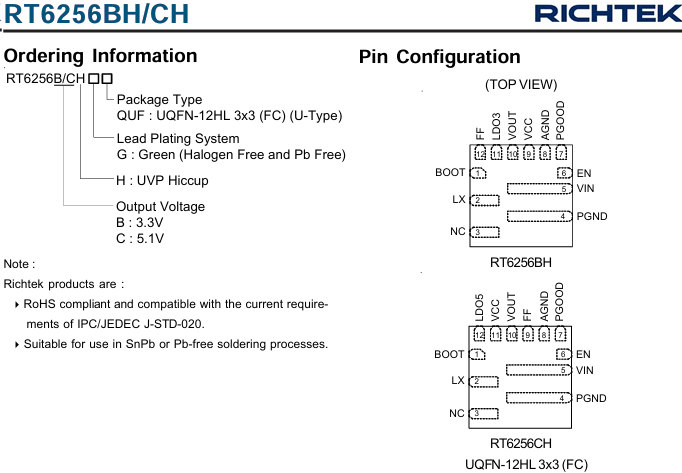

Package: UQFN-12HL 3x3 (FC) (SMD)
Datasheet: RT6256BH/CH Datasheet
Product Features
The RT6256BHGQUF (RT6256BH) is a 6A Synchronous Buck Converter with integrated power MOSFETs featuring ACOT® (Advanced Constant On-Time) control architecture. It provides stable operation with low ESR ceramic output capacitors without external compensation. The integrated 3.3V LDO output supplies additional power for external loads.
- Input Voltage: 4.5V - 23V
- Output Voltage: 3.3V (Fixed)
- Maximum Output Current: 6A (Continuous)
- Switching Frequency: 500kHz (Typ)
- Control Architecture: ACOT® (Advanced Constant On-Time)
- Internal MOSFET RDS(ON): 30mΩ (High-Side) / 15mΩ (Low-Side)
- Internal LDO Output: 3.3V / 100mA (LDO3 Pin)
- Quiescent Current: 100µA (Typ)
- Shutdown Current: 50µA (Typ)
- Soft-Start Time: 0.6ms (Typ)
- Current Limit: 7A (Valley) / 11A (Peak)
- Package Type: UQFN-12HL 3x3 (FC)
- Thermal Resistance (θJA): 40.8°C/W
- Protection Features: OVP (120%), UVP (60%), OCP (Cycle-by-Cycle), UVLO, OTP (150°C), Hiccup Mode
- Special Functions: Ultrasonic Mode (USM), Pre-biased Soft-Start, Power Good Output (PGOOD), Diode Emulation Mode (DEM)
Applications
- Industrial and Commercial Low Power Systems
- Computer Peripherals
- LCD Monitors and TVs
- Green Electronics / Appliances
- Point of Load (POL) Regulation - DSP, FPGA, ASIC Power Supply
- Notebook / Tablet Power Systems
