C4 Type Base Magnet Big

C4 is a class created by the stencil manufacturer to mold larger chipset models.

There are special main magnets, magnetically sensitive stencils, and intermediate/spencer/middle slots/plates available for this class. Stencils and intermediate slots in the C4 class may not be compatible with other main magnets.

Can this base magnet be used for all models? No, this base magnet must be used for with only C4 type bigger spencers and C4 type magnetic sensitive stencils.

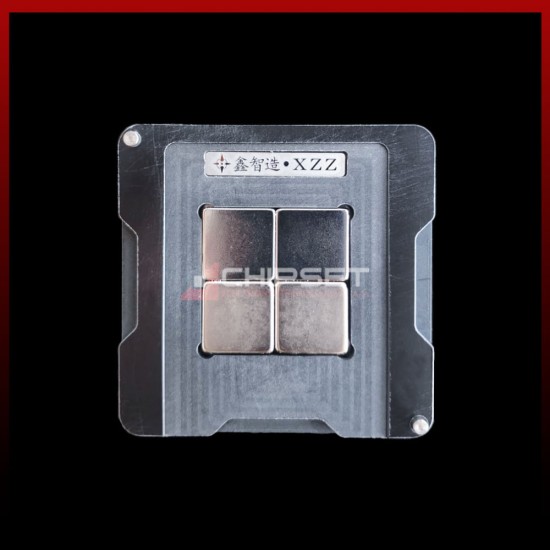

The product you are reviewing is a C4 Type Base-Main Magnet only.

Click here to check other C4 stencils, magnet and slots.

Application:

The chipset to be reballed is placed in the intermediate slot, the 3D stencil is placed on top, and finally, the C4 Main Magnet is placed on top. This way, the reballing process can be performed.

If solder balls are to be used in the reballing process, excess balls can be easily removed from the stencil's channel outlet, which will facilitate the process.

Solder paste can also be used in the reballing process. However, this depends entirely on the skill of the technician performing the process.

Video: coming soon...

Manufacturer: OEM

Brand: ChipsetAS

Specifications: 3D STENCIL FOR IC STENCIL 0.50MM

Condition: New, unused. Original.

Warranty Period: There is no warranty on stencil or magnet products.

IMPORTANT INFORMATION: Stencils and similar metal/plastic parts are carefully packaged to prevent damage during shipping. However, please open the package in the presence of the courier upon delivery and record a report if there is any damage. We do not accept responsibility for damages not documented with a report.

Shipping (Turkiye):

All orders placed before 16:30 on weekdays and 14:30 on Saturdays are picked up by the contracted courier on the same day. Orders placed after 16:30 will be shipped on the next business day.

Shipping (International):

All orders placed before 16:30 on weekdays will be given to local post office with Registered Air Parcel.

Usally international orders will be delivered in 7-10 days.

(***Excluding high-demand shipping periods, public holidays, or conditions that may prevent the courier company from operating.)

(Product photos are taken directly from our stock items.)
