TYPE-C Socket / Jack Huawei Matebook 13 14 DC Power & Data Port

Product Code: TYPE-C-HW-MB1314

Manufacturer / Quality: OEM (High-Quality Replacement Part)

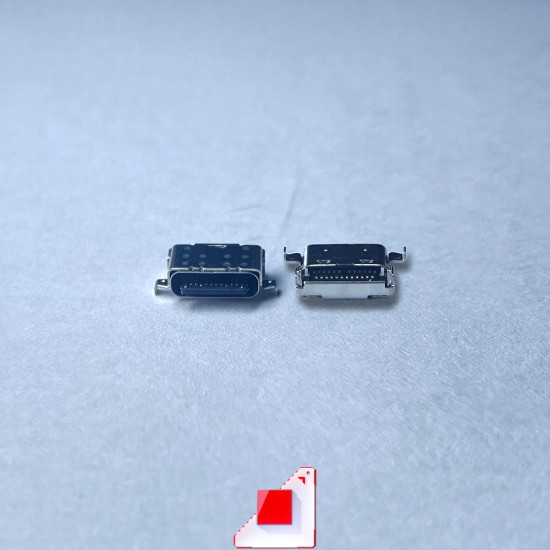

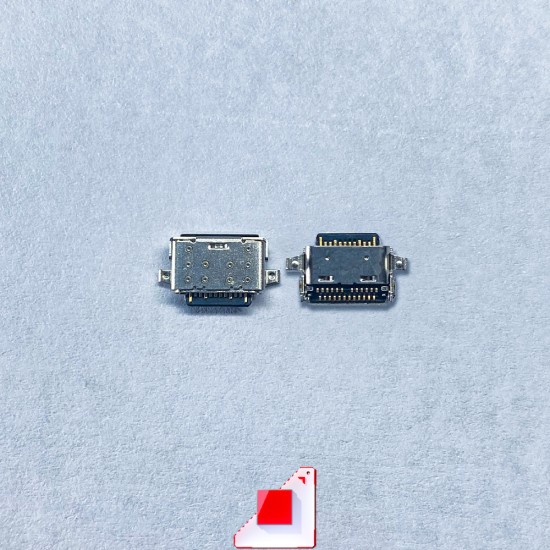

Compatible Models: Huawei Matebook 13 Series, Huawei Matebook 14 Series (Please visually compare the pin layout in the product image with your original socket before ordering.)

Mounting Type: 24Pin SMD (Surface Mount Device) and DIP (Through-Hole) Hybrid Structure

If you are not experienced in installing DC jacks, you should seek assistance from a qualified service provider. If you are unsure whether the jack is compatible with your device, please do not place an order. If the conductive parts require insulation after the DC jack is installed, please apply insulation. Our company cannot be held responsible for any malfunctions that may occur in your device following the installation of the DC jack.

Product Features

This product is a standard USB Type-C charging (DC Jack) and data transfer socket designed for Huawei Matebook 13 and Matebook 14 series notebooks, fully compatible with the device's original motherboard architecture. Due to its pin configuration, mounting it on the motherboard requires high precision; the data and power transmission pins are attached using SMD (surface mount) techniques, while the chassis legs utilize DIP (through-hole) soldering for extra durability on the motherboard. Therefore, it is highly recommended that the replacement be performed by expert technicians experienced in using a hot air station and micro-soldering.

• Type: USB Type-C Receptacle / DC Power Jack
• Application: Laptop Motherboard Power & Data Interface
• Mounting: Hybrid (SMD Data/Power Pins + Through-Hole Ground Legs)
• Function: Power Delivery (Charging), Data Transfer, Display Output support

Sales Information

Condition: BRAND NEW. In packaging.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
