MDU1512 30V 100A N-Channel Trench MOSFET DFN 5x6

Product Code: MDU1512

Brand: MagnaChip Semiconductor

Package: PowerDFN56 (5mm x 6mm)

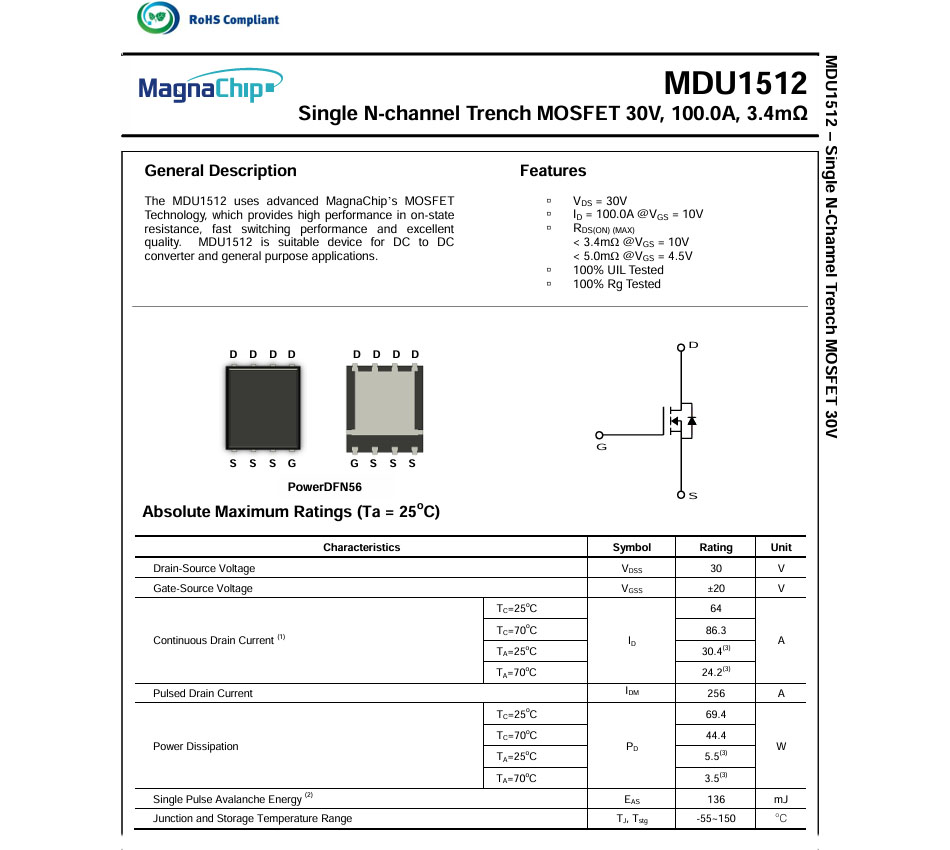

MDU1512 Datasheet

Product Specifications (Datasheet Values)

The MDU1512 is a high-performance N-Channel Trench MOSFET manufactured by MagnaChip Semiconductor. Designed using advanced MagnaChip MOSFET technology, it offers low on-state resistance, fast switching performance, and excellent quality. Ideal for DC-DC converters and general purpose power switching applications.

• MOSFET Type: N-Channel Trench MOSFET
• Drain-Source Voltage (VDS): 30V
• Continuous Drain Current (ID): 100A @ VGS=10V
• Continuous Drain Current (ID): 30.4A @ TA=25°C
• Pulsed Drain Current (IDM): 400A
• Gate-Source Voltage (VGS): ±20V
• Threshold Voltage (VGS(th)): 1.2V ~ 2.7V
• RDS(ON) @ VGS=10V: 3.4mΩ (max)
• RDS(ON) @ VGS=4.5V: 5.0mΩ (max)
• Single Pulse Avalanche Energy (EAS): 136mJ
• Power Dissipation (PD): 5.5W @ TA=25°C
• Operating Temperature (TJ): -55°C ~ +150°C
• Rise Time (tr): 12.2ns
• Output Capacitance (Coss): 449pF
• Testing: 100% UIL Tested, 100% Rg Tested
• Applications: DC-DC Converters, Power Switching, General Purpose Applications
• Package: PowerDFN56 (5mm x 6mm)
