JW5068BQFNF JW5068B Step Down Converter IC

Product Code: JW5068BQFNF#TRPBF QFN3X3-20

Product Name: JW5068B

Manufacturer: JoulWatt Technology

Features: High Efficiency 8A, 4-23V Input Synchronous Step Down Converter Regulator

Product Condition: NEW and Unused. Original.

Warranty Period: No warranty for semiconductor products.

Datasheet: Not available

Package Pinout and Product Details: TRPBF QFN3X3-20

FEATURES: 4V to 23V operating input range 8A output current - Up to 95% efficiency - High efficiency at light load - 650kHz frequency - Fixed 3.3V LDO output supplies 200mA - Input under voltage lockout - Power good indicator - Output discharge function - Output Over/Under Voltage Protection - Output short protection - Thermal protection - Available in QFN3X3-20 package

DESCRIPTION: The JW® 5068A is a monolithic buck switching regulator based on I2 architecture for fast transient response. Operating with an input range of 4V~26V, JW5068A delivers 8A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode. At light loads, the regulator operates in low frequency to maintain high efficiency and low output ripples. JW5068A guarantees robustness with output short protection, thermal protection, current run-away protection, and input under voltage lockout. JW5068A is available in QFN3X3-20 package, which provides a compact solution with minimal external components.

(Company’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of JoulWatt Technology Inc.)

Shipping (International):

International shipments are sent via registered mail with air parcel through the local post office. Orders are typically dispatched on the same day or the next business day. Flat shipping is available only for orders weighing under 100 grams.

Usually air parcel posts are delivered approximately within 7 days.

Shipping (Turkey):

All orders placed before 16:30 on weekdays are picked up by the contracted courier company on the same day. Orders placed after 16:30 will be given to the contracted courier company on the next business day.

(***Excluding busy courier periods, public holidays, conditions that may prevent the courier company from operating.)

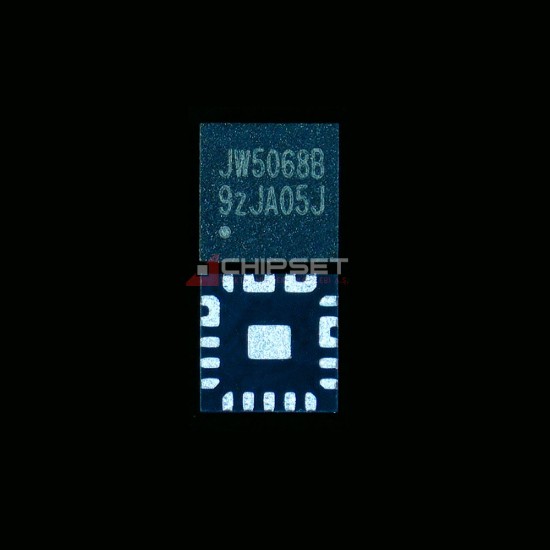

(Product photos are taken directly from our stock items.)
