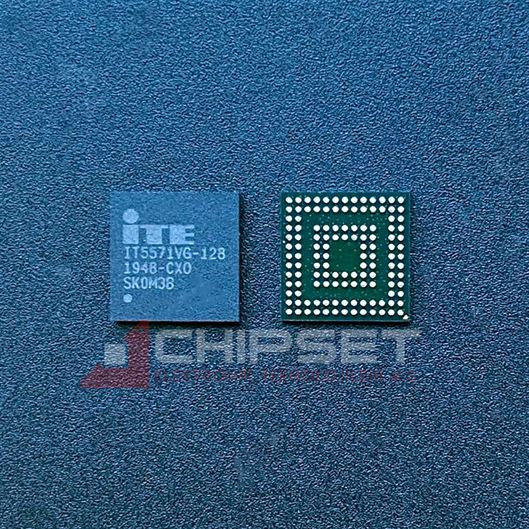

IT5571VG 128 CXO ITE Embedded Controller VFBGA
Product Code: IT5571VG-128-CXO
Part Marking: IT5571VG-128 CXO (Second Line)
Brand: ITE Tech. Inc.
Package Type: VFBGA (Ball Grid Array)
Datasheet: N/A
Product Features
The IT5571VG-128 (IT5571VG-128-CXO) is a high-performance Embedded Controller (EC) and KBC IC designed by ITE Tech for laptops and portable systems. It is provided in an industrial VFBGA (Ball Grid Array) package structure and requires BGA soldering techniques during the assembly process. It manages basic I/O (input/output) processes such as keyboard and touchpad interfaces, power sequencing, battery charge management, and thermal monitoring (fan control, temperature sensors) on the motherboard. As indicated by the chip code extension, it is equipped with a 128KB programmable eFlash (Embedded Flash) memory. Therefore, after hardware assembly, it is a technical necessity to program it with the appropriate firmware for the specific motherboard via the parallel port, I2C, or keyboard connector interface, depending on the motherboard's architecture, to initiate the system cycle. It is a specific controller used in the I/O and power management circuits of laptop motherboards.
- Type: Embedded Controller (EC) / KBC IC
- Internal Memory: 128KB programmable eFlash memory
- Features: Power sequencing, battery management, and thermal control infrastructure
- Programming: Programming support via parallel port, I2C, or keyboard interface (Programming is mandatory after assembly.)
- Version Code: CXO
- Package Type: VFBGA (Ball grid array structure)
- Applications: Laptop motherboards
