- Stock: In Stock
- Model: TPS548A20RVER

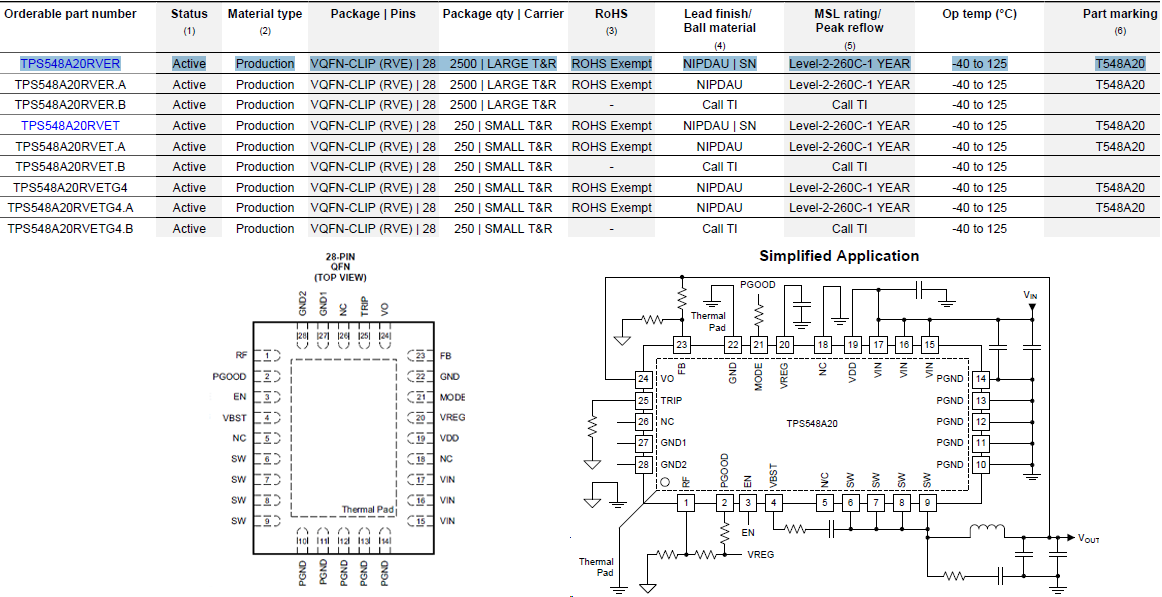

TPS548A20RVER 15-A Synchronous Step-Down SWIFT™ Converter
Product Code: TPS548A20RVER
Part Marking: T548A20
Brand: Texas Instruments (TI)
Package: 28-Pin VQFN-CLIP (4.5mm x 3.5mm)
Product Features
The TPS548A20RVER is a high-efficiency Synchronous Buck Converter with integrated MOSFETs, supporting up to 15-A continuous output current. It utilizes TI's proprietary D-CAP3™ control mode for ultra-fast load-step response and supports all ceramic output capacitors without external compensation.
- Conversion Input Voltage: 1.5 V to 20 V (with Snubber).
- Bias Input Voltage: 4.5 V to 25 V.
- Output Voltage Range: 0.6 V to 5.5 V.
- Continuous Output Current: 15 A (Integrated 9.9-mΩ and 4.3-mΩ MOSFETs).
- Switching Frequency: Eight selectable settings from 200 kHz to 1 MHz.
- Control Mode: D-CAP3™ for fast transient response.
- Operating Modes: Auto-Skipping Eco-Mode™ for light-load efficiency or FCCM for tight ripple requirements.
- Protection Features: Hiccup Over Current Protection (OCP), OVP, UVP, UVLO, and Thermal Shutdown.
- Package Type: Small 4.5 mm × 3.5 mm, 28-Pin VQFN-CLIP.
Applications
Designed for Server, Cloud-Computing, Storage, Telecom & Networking, IPC, and Point-of-Load (POL) applications.
Sales Information
Condition: NEW. Original.
Warranty: No warranty on semiconductor products.
Domestic Shipping (Turkey): All orders placed before 16:00 on weekdays and 14:30 on Saturdays are shipped on the same day via contracted cargo.
International Shipping: Orders placed before 16:00 on weekdays are shipped on the same business day via Air Parcel. Shipping country: Turkey.
