AOZ5048QI HIGH-CURRENT, HIGH-PERFORMANCE DrMOS POWER MODULE

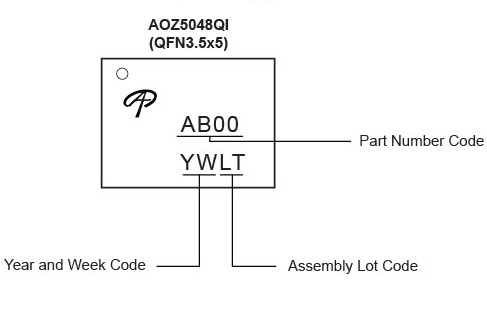

Product Code: AOZ5048QI AB00

Brand: Alpha & Omega Semiconductor (AOS)

Package Code: QFN-24L (3.5mm x 5mm Compact Package)

AOZ5048QI Datasheet

Product Specifications (Datasheet Data)

The AOZ5048QI is a high-efficiency synchronous buck power stage module (DrMOS) consisting of two asymmetrical MOSFETs and an integrated driver. The compact 3.5mm x 5mm QFN package is designed to minimize parasitic inductance and thus the EMI signature. The High-Side MOSFET is optimized for low capacitance and gate charge for low switching loss. The Low-Side MOSFET has ultra-low ON resistance to minimize conduction loss. Precise control is intended using PWM and/or FCCM inputs with TTL and Tri-State compatibility.

• Product Name: AOZ5048QI AB00 ABOO.
• Function: High-Current, High-Performance DrMOS Power Module.
• Input Power Voltage Range (VIN): 4.5V - 25V.
• Driver Supply Voltage Range (VCC, PVCC): 4.5V - 5.5V.
• Maximum Peak Output Current: Up to 35A.
• Switching Frequency: Up to 2 MHz.
• Control Signal: Compatible with TTL/Tri-State PWM input.
• Integrated Components: Integrated bootstrap schottky diode is available.
• Operating Modes: Diode Emulation or Continuous Conduction Mode (CCM) operation via FCCM control.
• Protection Features: Under-Voltage Lockout (UVLO).
• Package: Compact 3.5mm x 5mm QFN-24L.

Sales Information

Condition: BRAND NEW. Original.

Warranty Period: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed on weekdays until 16:00 and Saturdays until 14:30 are shipped on the same day via contracted courier. (Excluding busy shipping periods and extraordinary circumstances)

International Shipping: Orders placed before 16:00 on weekdays are shipped on the same business day via Air Parcel. Orders placed on weekends and outside business hours are shipped on the following business day. (Excluding busy periods) Shipping country is Turkey.
