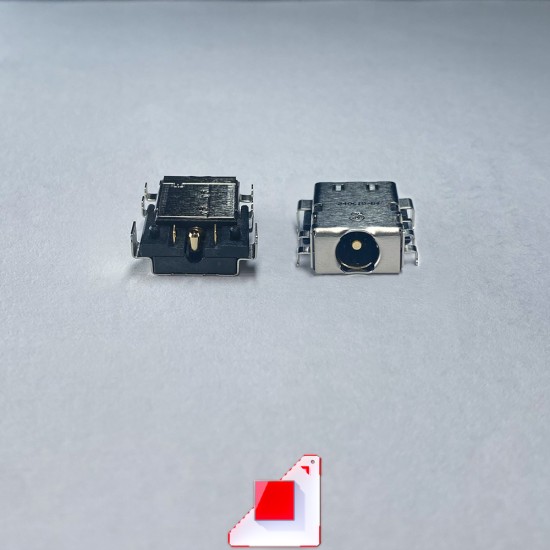

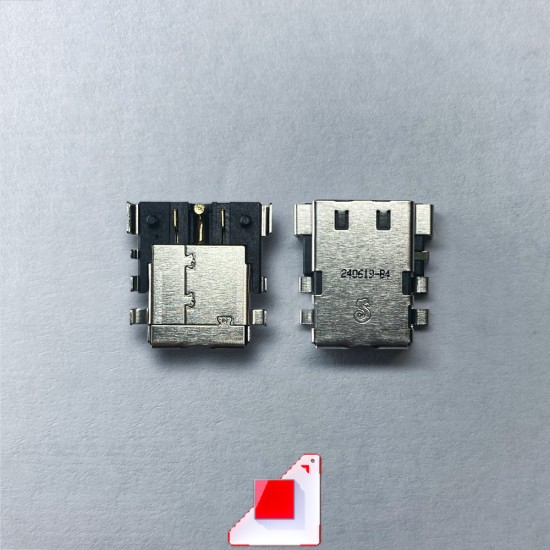

Soldered DC Socket / Power Jack Acer Nitro 5 AN515-44 AN515-55 Series Charging Port

Product Code: NITRO-AN515-DC

Compatible Chassis / Part Numbers: N20C1, N20C2, N22C3, N20C6, N20C8, 780071-SD1, etc.

Compatible Models: Acer Nitro 5 Series AN515-44, AN515-45, AN515-55, AN515-56, AN515-57, AN517-52, AN517-55. Acer Predator Helios 300 Series PH315-53, PH315-54, PH317-55, PHN16-71. (Please visually compare the pin layout and structure with your original part before ordering.)

Mounting Type: DIP (Through-Hole) Motherboard Soldered Connector

If you are not experienced in installing DC jacks, you should seek assistance from a qualified service provider. If you are unsure whether the jack is compatible with your device, please do not place an order. If the conductive parts require insulation after the DC jack is installed, please apply insulation. Our company cannot be held responsible for any malfunctions that may occur in your device following the installation of the DC jack.

Product Features

This product is a standard motherboard charging socket specifically designed for high-performance Acer Nitro 5 and Predator Helios series gaming laptops, capable of flawlessly handling high Wattage values. It features a center-pin contact port structure that is perfectly compatible with your device's original charging adapters. It is not a wired product; its chassis legs and rear power pins are directly soldered onto the motherboard (via DIP mounting technique). Since the installation process requires high heat and precision, it is highly recommended that the replacement be performed by expert technicians experienced in micro-soldering and hot air stations.

• Type: DC Power Jack (Motherboard Soldered Charging Socket)
• DC Port (Adapter Input): Original Center Pin Input (Fully compatible with your adapter)
• Power Support: Industrial quality conforming to high current standards
• Installation: Requires direct soldering to the motherboard (Expert technician installation recommended).

Sales Information

Condition: BRAND NEW. High-Quality Replacement Part.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
