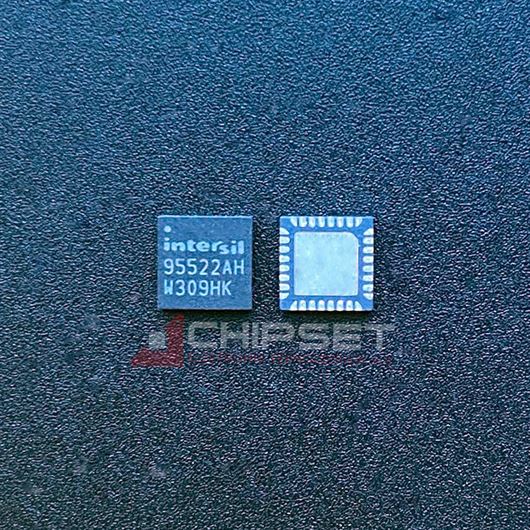

ISL95522A ISL95522AHRZ Renesas Combo Battery Charger QFN-32
Product Code: ISL95522AHRZ
Part Marking: 95522AH
Brand: Renesas Intersil
Package Type: QFN-32 (4x4 mm)
Datashort: ISL95522A
Product Features
The ISL95522AHRZ is a highly versatile combination battery charger with an SMBus interface, developed by Renesas Intersil for laptops and portable devices. This IC offers the flexibility to be configured as either a Hybrid Power Boost (HPB) charger or a Narrow VDC (NVDC) charger, supporting 2-, 3-, or 4-cell batteries. In both configurations, it allows the battery to work in tandem with the adapter to supply the system load when it exceeds the adapter's capability (system Turbo mode). In the HPB configuration, battery energy is reverse-boosted to the system bus, while in the NVDC configuration, BGATE turns on quickly to enable the battery to assist the adapter. It utilizes N-channel MOSFETs (NFETs) for all switches to maximize performance and minimize BOM cost. With the Renesas Robust Ripple Regulator (R3) modulation scheme, it delivers excellent light-load efficiency and fast dynamic response.
- Type: Combo Battery Charger (HPB & NVDC)
- Supported Battery Type: 2-, 3-, or 4-cell rechargeable batteries
- Operation Modes: Hybrid Power Boost (HPB), Narrow VDC (NVDC), and Turbo Mode
- Control Architecture: Renesas Robust Ripple Regulator (R3) modulation scheme
- Protections: PROCHOT# indicator (system low voltage, adapter/battery overcurrent, or overheating), hardware-based adapter and battery current limits
- Package Type: QFN-32 (4x4 mm)
- Applications: Laptops and portable devices with rechargeable batteries (Battery power circuits)
Sales Information
Condition: Refurbished. Original.
Warranty: No warranty is provided for semiconductor products.
Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)
International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
