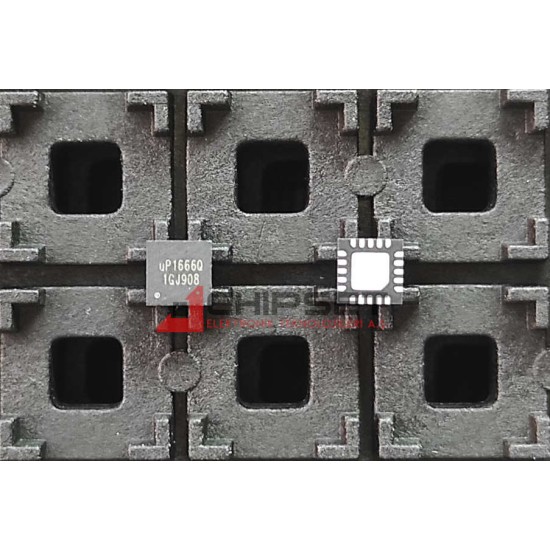

uP1666QQKF uP1666Q uPI 2-Phase Buck Controller WQFN-20

Product Code: uP1666QQKF

Part Marking: uP1666Q

Brand: uPI Semiconductor

Package Code: WQFN-20 3x3 mm

Datasheet: uP1666Q

Product Specifications

The uP1666QQKF is a high-performance 2/1-phase synchronous-rectified buck controller manufactured by uPI Semiconductor, specifically designed for mobile GPU power delivery. Operating with an input voltage between 2.5V and 20V, this IC supports the NVIDIA Open Voltage Regulator 2+ standard and features PWMVID. Thanks to uPI's proprietary RCOTT™ technology, it provides an excellent and very fast transient response to load and line changes. Packaged in a compact WQFN-20, this chip plays a critical role in repairing graphics card (VGA/GPU) power (VRM) circuits in laptops.

• Type: 2-Phase Synchronous-Rectified Buck Controller
• Input Voltage (Vin): 2.5V - 20V
• Control Architecture: RCOTT™ Technology, PWMVID Support
• Features: NVIDIA Open Voltage Regulator 2+ compatible, MOSFET RDS(ON) current sensing

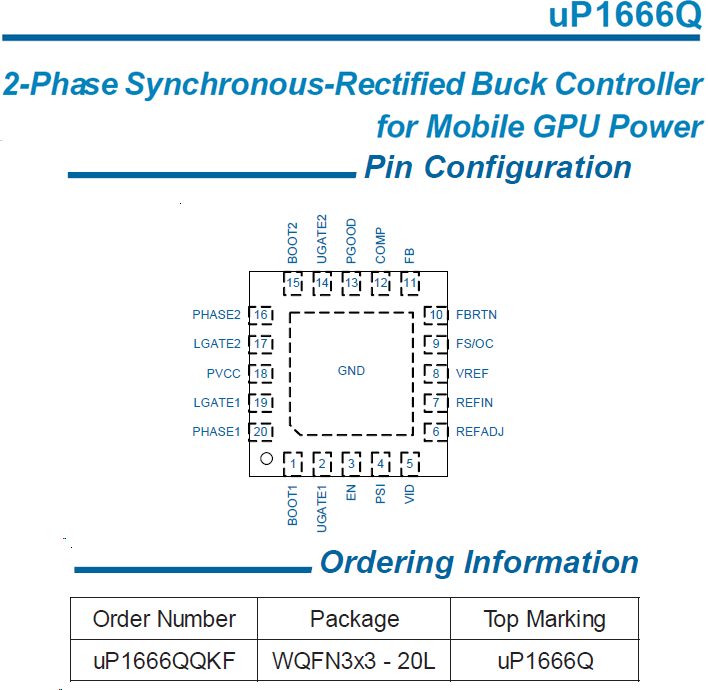

• Package: WQFN3x3-20L
• Applications: Mobile GPU (Graphics Card) power supply circuits, laptop VGA power repairs

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:00 on weekdays and 14:30 on Saturdays are shipped the same day via contracted courier. (Excluding busy shipping periods and extraordinary circumstances)

International Shipping: Orders placed before 16:00 on weekdays are shipped the same business day via Air Parcel. Orders placed on weekends and outside working hours are shipped on the following first business day. (Excluding busy periods) Country of dispatch is Turkey.
