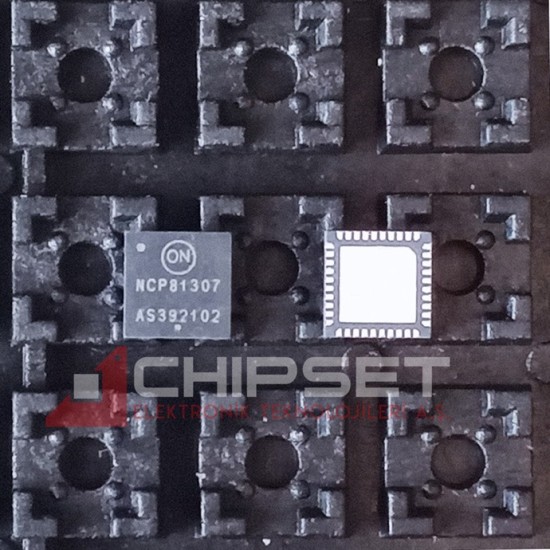

NCP81307 NCP81307MNTXG ON Semiconductor Single Output 4-Phase PWM Controller QFN-40

Product Code: NCP81307MNTXG

Part Marking: NCP81307

Brand: ON Semiconductor

Package Type: QFN-40 (5x5 mm)

Datasheet: NCP81307

Product Features

The NCP81307MNTXG is a single-rail, 4-phase PWM controller with an SVID interface, optimized by ON Semiconductor for Intel's IMVP9 CPUs. Its multi-phase rail control system is based on Dual-Edge PWM combined with DCR current sensing to provide an ultra-fast initial response to dynamic load events and reduce system costs. It features an ultra-low offset current monitor amplifier with programmable offset compensation for highly accurate current monitoring. Designed to meet the power requirements of desktop and notebook processors, it comes in a 40-pin QFN package.

• Type: Single Output Multi-Phase PWM Controller
• Input Voltage Range: 4.5 V to 21 V
• Compatibility: Intel IMVP9 CPU specifications and SVID interface
• Control Architecture: Dual-Edge PWM and DCR current sensing
• Features: Digital soft start, adjustable Vboot and switching frequency, dynamic VID feed-forward, UltraSonic operation mode
• Protections: OVP (Over-Voltage), OCP (Over-Current), and UVP (Under-Voltage)
• Package Type: QFN-40 (5x5 mm)
• Applications: Desktop, notebook, and gaming PC processor power circuits
