NCP81610 NCP81610MNTXG ON Semiconductor PWM Controller QFN-40

Product Code: NCP81610MNTXG

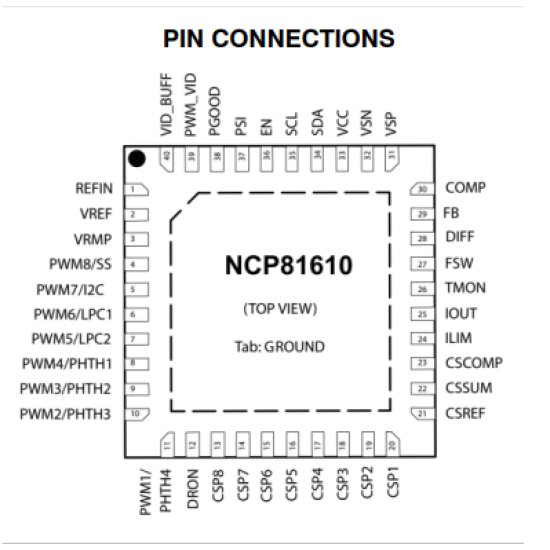

Part Marking: NCP81610

Brand: ON Semiconductor

Package Code: QFN-40 (5x5 mm)

Datasheet: NCP81610

Product Specifications

The NCP81610MNTXG is a multiphase synchronous buck controller manufactured by ON Semiconductor, optimized for new generation computing and graphics processors. It is capable of driving up to 8 phases and incorporates differential voltage and phase current sensing, adaptive voltage positioning, and a PWM_VID interface. With its integrated Power Saving Interface (PSI) and I2C control interface, it ensures high efficiency in light-load conditions. The dual edge PWM multiphase architecture provides fast transient response and good dynamic current balance.

• Type: Multiphase Synchronous Buck PWM Controller
• Phase Capacity: Supports up to 8 phases
• Input Voltage Range: 2.8 V to 20 V
• Interface and Control: PWM_VID and I2C interfaces, Power Saving Interface (PSI)
• Protections: UVP (Under Voltage), OVP (Over Voltage), Per Phase OCL and System OCP (Over Current), TSD (Thermal Shutdown)
• Package: QFN-40 (5x5 mm, 0.4 mm Pitch)
• Applications: GPU and CPU power, graphics cards, desktop and notebook applications, docking stations, and power banks

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:00 on weekdays and 14:30 on Saturdays are shipped the same day via contracted courier. (Excluding busy shipping periods and extraordinary circumstances)

International Shipping: Orders placed before 16:00 on weekdays are shipped the same business day via Air Parcel. Orders placed on weekends and outside working hours are shipped on the following first business day. (Excluding busy periods) Country of dispatch is Turkey.
