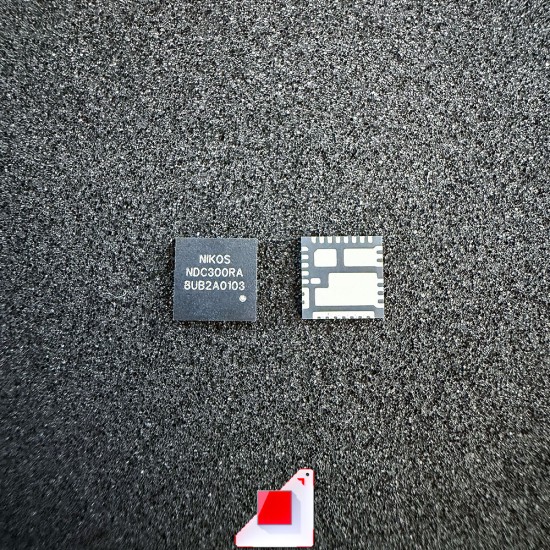

NDC300RA Nikos Integrated Driver and MOSFET PQFN-31

Product Code: NDC300RA

Part Marking: NDC300RA

Brand: Nikos Nikos (Niko Semiconductor Co., LTD.)

Package Type: PQFN31-5x5 (31-Pin)

Datasheet: N/A

Product Features

The NDC300RA is a fully integrated MOSFET driver, high-side MOSFET, and low-side MOSFET packaged into a single solution by NIKO-SEM, optimized for high-current DC-DC buck power conversion applications. Compared to discrete component solutions, this integrated device significantly reduces package parasitics and board space. It is capable of delivering up to 55A of average current and supports high-frequency switching up to 1 MHz. It features an internal bootstrap diode, reducing the need for external components. The driver is compatible with 3.3V or 5V PWM inputs and responds appropriately to 3-level (tri-state) PWM signals, supporting diode emulation mode via the SMOD# pin. It is an ideal power solution for desktop and notebook microprocessors, servers, and high-current Point-of-Load DC-DC converters.

• Type: Integrated Driver and MOSFET (DrMOS)
• Maximum Current Capacity: 55A average, 75A peak current
• Operating Frequency: Capable of switching at frequencies up to 1 MHz
• Input Compatibility: Compatible with 3.3V or 5V PWM inputs, responds to 3-level PWM signals
• Additional Features: Internal bootstrap diode, Undervoltage Lockout (UVLO), Shoot-Through Protection
• Intel Compatibility: Supports Intel Power State 4
• Package Type: PQFN31-5x5, Halogen-Free and Lead-Free (RoHS Compliant)
• Applications: Desktop and notebook CPU/GPU V-Core circuits, High-Current Point-of-Load converters

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
