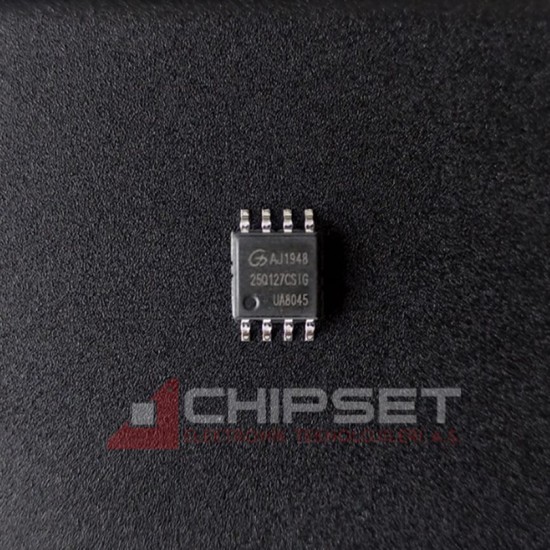

25Q127CSIG GD25Q127CSIG 128Mbit 3.3V Dual/Quad SPI Flash SOP8

Product Code: GD25Q127CSIG

Part Marking: 25Q127CSIG

Brand: GigaDevice

Package: SOP8 208MIL

Product Specifications (Datasheet Data)

The GD25Q127CSIG is a 128M-bit (16MB) 3.3V SPI Flash memory manufactured by GigaDevice. It supports Standard SPI, Dual SPI, and Quad SPI interfaces. Achieves data transfer rates of 208Mbits/s in Dual I/O mode and 416Mbits/s in Quad I/O mode. Ideal for BIOS, firmware storage, embedded systems, and IoT applications.

• Memory Capacity: 128M-bit (16MB)
• Organization: 16384K x 8 bit
• Page Size: 256 Bytes
• Sector Size: 4KB (Uniform Sector)
• Block Size: 32KB / 64KB
• Interface: Standard SPI, Dual SPI, Quad SPI
• Clock Frequency: 104MHz (Standard/Dual SPI Fast Read)
• Data Transfer Rate: Dual I/O 208Mbits/s, Quad I/O 416Mbits/s
• Supply Voltage (VCC): 2.7V ~ 3.6V
• Page Program Time: 0.5ms (typ)
• Sector Erase Time (4KB): 50ms (typ)
• Block Erase Time (64KB): 0.3s (typ)
• Chip Erase Time: 50s (typ)
• Program/Erase Cycles: Min 100,000
• Data Retention: 20 Years
• Standby Current: 20µA (typ)
• Deep Power-Down Current: 1µA (typ)
• JEDEC ID: C8 40 18
• Features: 128-bit Unique ID, 3x1024-Byte Security Registers, XIP Support, Software/Hardware Write Protection
• Operating Temperature: -40°C ~ +85°C

Datasheet: 25Q127CSIG
