D6SC4-12 Schott SEFUSE 12A SMD Battery Fuse
Product Code: D6SC4-12

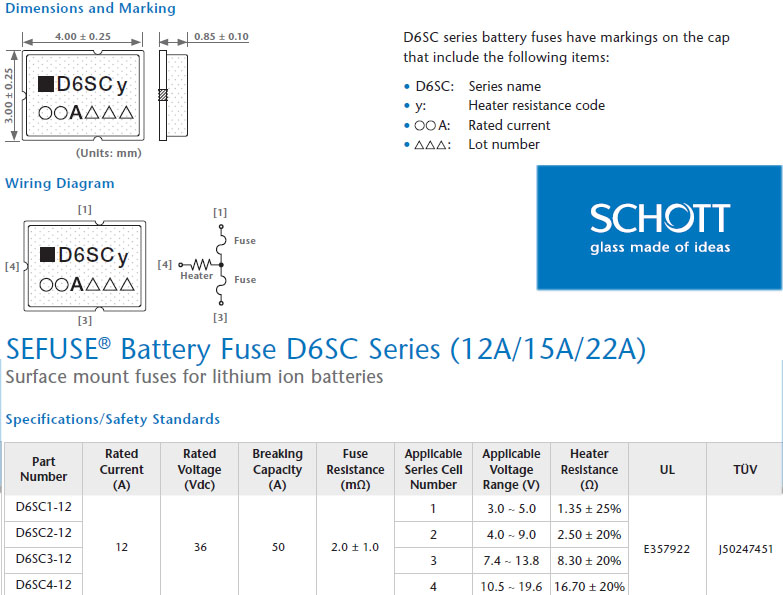

Part Marking: D6SC 4 (Bottom line: 12A)
Brand: SCHOTT
Package Code: SMD (4.00 x 3.00 mm)
Product Features
The SCHOTT SEFUSE D6SC4-12 is a surface-mount (SMD) battery logic fuse designed for the secondary protection of lithium-ion battery packs. It helps prevent fires and damage caused by overcurrent and overcharging. This specific model is tailored for 4-series cell (4S) configurations, operating within a voltage range of 10.5V to 19.6V. Its thin and compact design makes it ideal for space-constrained BMS applications in laptops, power tools, and cordless appliances.
- Series: D6SC Series (Surface Mount)
- Rated Current: 12A
- Rated Voltage: 36V DC
- Applicable Voltage Range: 10.5V - 19.6V (Optimized for 4 Cells)
- Heater Resistance: 16.70 Ω (±20%)
- Fuse Resistance: 2.0 mΩ (±1.0)
- Breaking Capacity: 50A
- Package Dimensions: 4.0mm x 3.0mm x 0.85mm
- Applications: Notebook Battery Packs, Power Tools, Cordless Vacuum Cleaners
Sales Information
Condition: NEW. Original.
Warranty Period: No warranty is provided for semiconductor products.
Shipping (Turkey): All orders placed before 16:00 on weekdays and 14:30 on Saturdays are shipped the same day via contracted shipping companies. (Excluding peak shipping periods and exceptional circumstances)
International Shipping: Orders placed before 16:00 on weekdays are shipped the same business day via Air Parcel. Orders placed on weekends or outside business hours are shipped on the next first business day. (Excluding peak periods) Dispatch country: Turkey.
