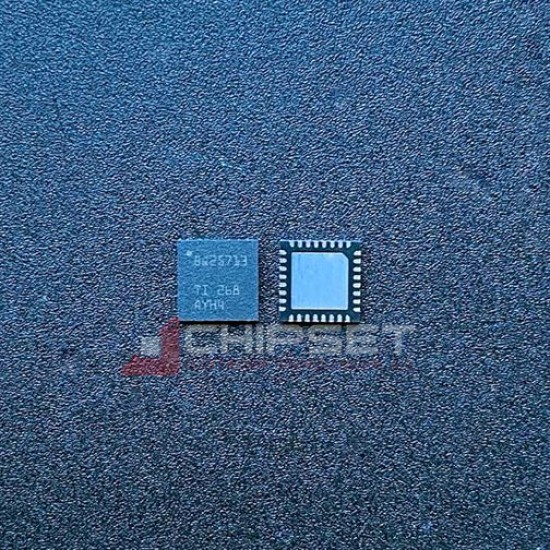

BQ25713 BQ25713RSNR Texas Instruments I2C NVDC Buck-Boost Charge Controller WQFN-32

Product Code: BQ25713RSNR

Part Marking: BQ25713

Brand: Texas Instruments (TI)

Package Type: WQFN-32 (4x4 mm)

Datasheet: BQ25713

Product Features

The BQ25713RSNR, BQ25713RSNT (BQ25713) is a high-performance I2C Narrow VDC (NVDC) buck-boost battery charge controller designed by Texas Instruments (TI) for laptops and portable smart devices. Operating over a very wide input voltage range from 3.5V to 24V, it is capable of managing the charging operations of 1-cell to 4-cell (1s to 4s) batteries. It is designed to be fully compatible with USB 2.0, USB 3.0, Type-C, and advanced USB-PD (Power Delivery) standards. Thanks to its advanced architecture, it ensures a seamless transition among buck, buck-boost, and boost operations to deliver power from the adapter to the system with maximum efficiency. Utilizing Narrow VDC (NVDC) power path management, it supports instant-on operation even if the battery is completely depleted or removed. It is fully compliant with IMVP8 and IMVP9 standards, meeting the power management requirements of modern processors, and provides a comprehensive PROCHOT profile for CPU throttling. Additionally, it features a highly precise adjustable output from 3V to 20.8V to power up USB ports directly from the battery (USB OTG). It is one of the most frequently encountered power management ICs in new generation laptop motherboards.

• Type: I2C Narrow VDC (NVDC) Buck-Boost Battery Charge Controller
• Battery Support: 1-cell to 4-cell (1s to 4s) Li-Ion / Li-Polymer
• Input Voltage Range: 3.5V to 24V wide operating tolerance
• Interface and Standards: I2C control, USB-PD, Type-C, IMVP8, and IMVP9 compliance
• Additional Features: NVDC power path, PROCHOT support, Pass Through Mode (PTM), and USB OTG
• Package Type: WQFN-32 (4x4 mm)
• Applications: Notebooks, ultrabooks, tablets, power banks, and industrial/medical devices

Sales Information

Condition: BRAND NEW. Original.

Warranty: No warranty is provided for semiconductor products.

Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)

International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
