- Stock: In Stock
- Model: BD93291EFJ
D93291 BD93291EFJ DUAL SYNCHRONOUS BUCK CONVERTER 8-26V HTSOP-J8
Product Code: BD93291EFJ
Brand: ROHM SEMICONDUCTOR
Package Code: HTSOP-J8 (8-Pin Surface Mount Package)

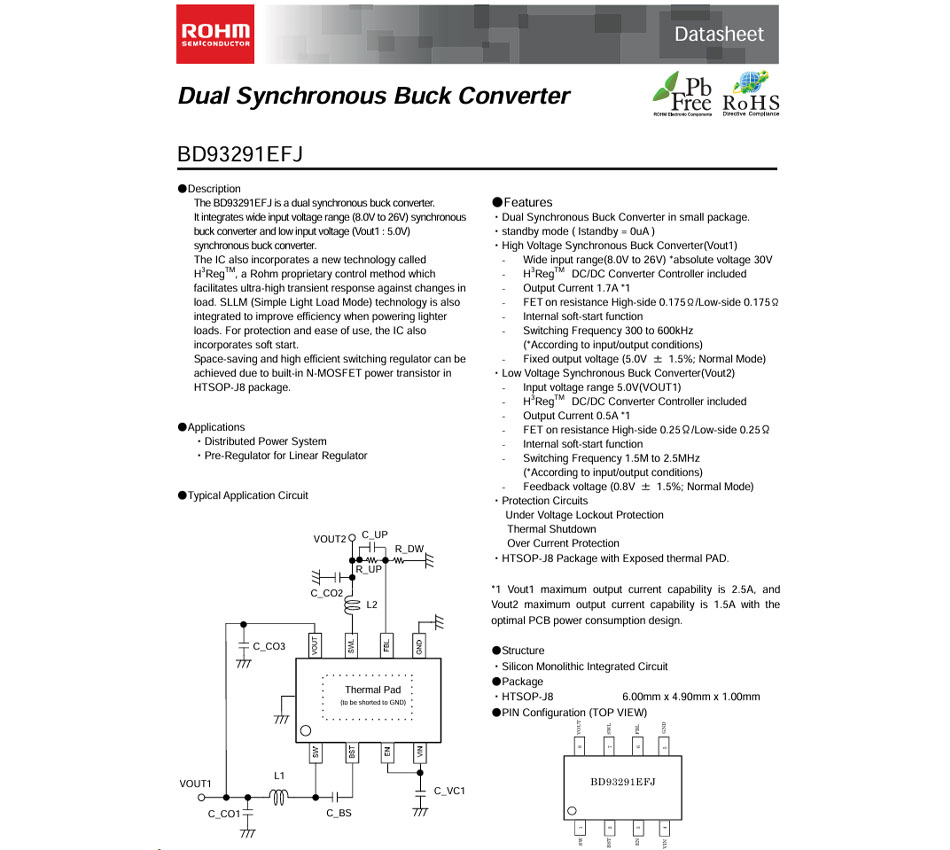

Product Specifications (Datasheet Data)
A high-efficiency Dual Synchronous Buck Converter with an integrated N-MOSFET power transistor. ROHM's proprietary H³Reg™ control technology provides ultra-fast transient response, and SLLM™ technology improves efficiency at light loads.
- Product Name: BD93291EFJ.
- Specific Product Name: BD93291EFJ D93291 HTSOP-J8.
- Function: Dual Synchronous Buck Converter.
- Input Voltage Range: Integrated wide range (8.0V to 26V) and low input (VOUT1: 5.0V) converters. (Absolute maximum voltage: 30V).
- Control Technology: Includes H³Reg™ (Ultra-high transient response) and SLLM™ (Simple Light Load Mode) technologies.
- Output Current: 1.7A (maximum, for VOUT1).
- Standby Current: 0µA in Standby mode (Istandby = 0uA).
- Protection: Soft Start is integrated.
- Transistor: Internal N-MOSFET Power Transistor.
- Compatible Sockets: HTSOP-J8.
Sales Information
Condition: BRAND NEW. Original.
Warranty Period: No warranty is provided for semiconductor products.
Shipping (Turkey): All orders placed on weekdays until 16:00 and Saturdays until 14:30 are shipped on the same day via contracted courier. (Excluding busy shipping periods and extraordinary circumstances)
International Shipping: Orders placed before 16:00 on weekdays are shipped on the same business day via Air Parcel. Orders placed on weekends and outside business hours are shipped on the following business day. (Excluding busy periods) Shipping country is Turkey.
