AON6512 30V N-CHANNEL 210A DFN5x6 MOSFET

- Latest Trench Power AlphaMOS (αMOS LV) technology

- at 4.5V_G very low R_DS(on)

- Low Gate Charge

- High Current

- RoHS & Halogen-Free Compilant

Product Properties:

V_DS                                 : 30V

I_D (at V_GS=10V)             : 210A

R_DS(ON) (at V_GS=10V)    :< 1.7mΩ

R_DS(ON) (at V_GS=4.5V)   :< 3.2mΩ

Application:

- DC/DC Converters in Computing, Servers, and POL.

- Isolated DC/DC Converters in Telecom and Industrial.

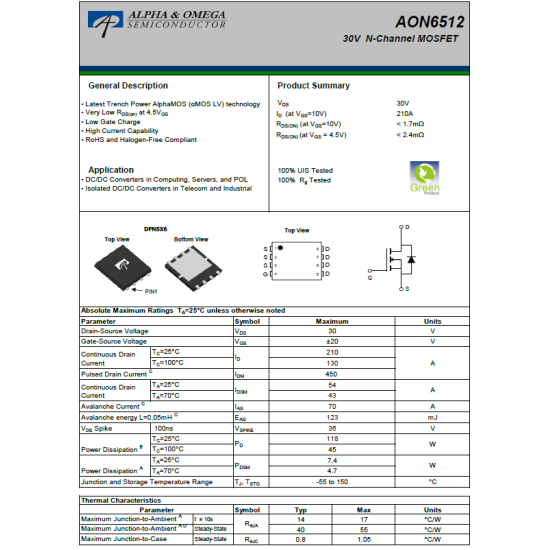

Datasheet Link: AON6512

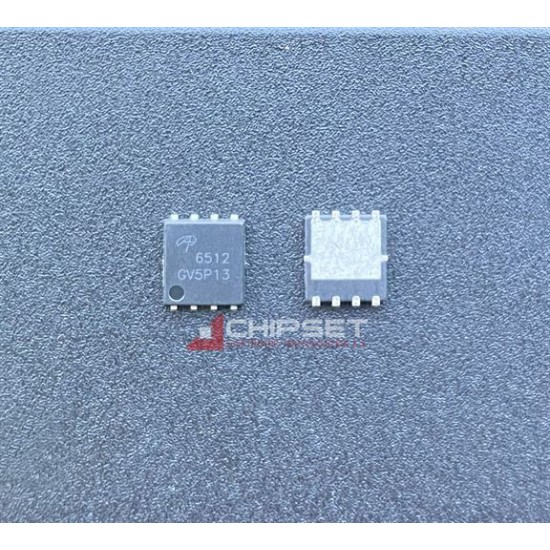

Product Appearance and Package Details:

All specifications and information about the product were taken from the manufacturer's technical data document.  For more detailed information, you can visit the Alpha Omega website for more detailed information.  Product brand and rights belong to Alpha Omega. All data here is a description of the product sold.

Chip Code:  AON6512 MOSFET ENTEGRE

Chip Name:  AON6512 ENTEGRE

Brand: Alpha - Omega

Condition: Brand new, orginal AO Distribitor product.

Warranty Time: There is no warranty for semiconductor products.

Cargo:

Varies.

(Ürün fotoğrafları stoklardaki ürünlerimizden birebir çekilmiştir.)
