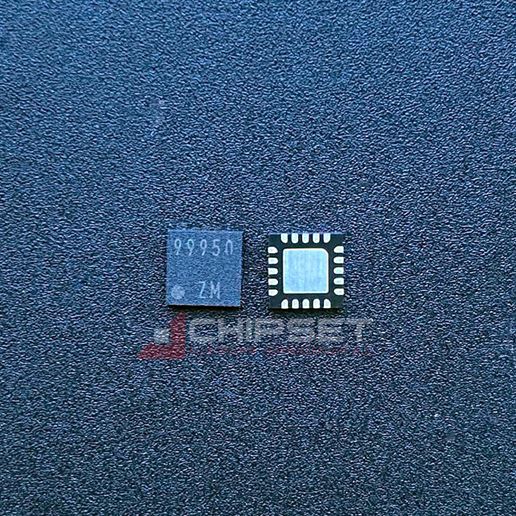

BD99950MUV-E2 99950 ROHM SMBus 2-3 Cell NVDC Battery Charger Controller VQFN-20
Product Code: BD99950MUV-E2
Part Marking: 99950
Brand: ROHM Semiconductor
Package Type: VQFN20PV3535 (3.5x3.5 mm)
Datasheet: BD99950MUV-E2
Product Features
The BD99950MUV-E2 (BD99950) is a high-efficiency, synchronous Narrow VDC (NVDC) battery charger controller designed by ROHM Semiconductor for ultrabooks, notebooks, and tablet PCs. Controlled via the SMBus interface, this chip precisely manages the charging processes of 2-cell and 3-cell batteries. Operating over a wide AC adapter input voltage range from 6.0V to 24.0V, it flawlessly ensures the transition between system power and the battery. Thanks to its built-in dual charge pump architecture, it directly drives N-channel MOSFETs to automatically perform system power source selection. The programmable PWM switching frequency from 600kHz to 1.2MHz allows for the reduction of external inductor sizes, saving space on the PCB. To maximize system safety, it features comprehensive protection hardware such as over-voltage protection (ACOVP, BATTOVP), over-current protection (ACOC, High/Low-Side FET OCP), and a 175°C thermal shutdown (TSHUT). Furthermore, it is an advanced charge control IC in a VQFN-20 package that offers high-level power management features such as fast DPM transient response under Turbo Mode and fast load current transient response even under no battery conditions.
- Type: SMBus Narrow VDC (NVDC) Battery Charger Controller
- Battery Support: 2-cell and 3-cell charging control
- Input Voltage Range: 6.0V to 24.0V wide operating tolerance
- Interface and Frequency: SMBus control and 600kHz to 1.2MHz programmable switching frequency
- Protection Features: ACOC, ACOVP, BATTOVP, High/Low-Side FET OCP, and thermal shutdown (TSHUT)
- Package Type: VQFN20PV3535 (3.5x3.5 mm)
- Applications: Ultrabooks, notebook PCs, tablets, and ultra-mobile PCs
Sales Information
Condition: BRAND NEW. Original.
Warranty: No warranty is provided for semiconductor products.
Shipping (Turkey): All orders placed before 16:30 on weekdays and 14:30 on Saturdays are shipped the same day via our contracted courier. (Excluding peak shipping periods, public holidays, and conditions that may prevent the courier company from operating)
International Shipping: Orders placed before 16:30 on weekdays are shipped via Air Parcel on the same business day. Orders placed on weekends and outside working hours are shipped on the next business day. (Excluding peak periods) Country of origin: Turkey.
